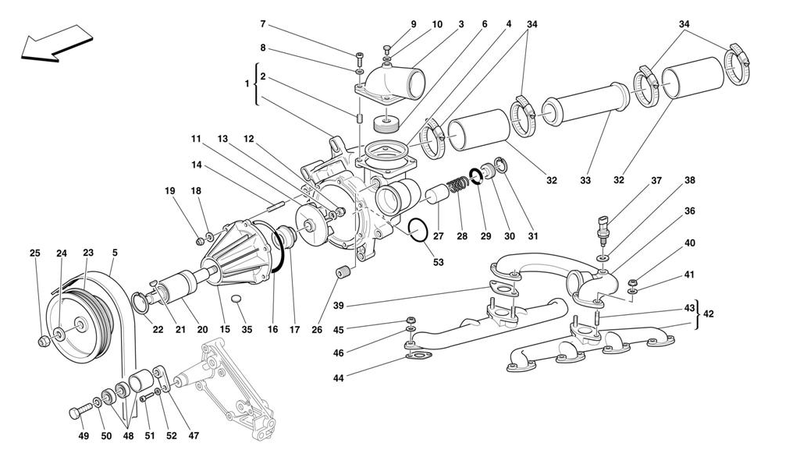

1 - 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 1 WATER PUMP Ferrari, F360 Challenge, Body

2 - Heli-coil

3 - THERMOSTATIC VALVE COVER

4 - FLANGE FOR PUMP RETAING

5 - WATER PUMP AND GENERATOR CONT

6 - THREADED PLUG

7 - SCREW

8 - Washer New Price on Enquiry

9 - Drain union

10 - Gasket

11 - WATER PUMP ROTOR

12 - Water Pump Domed Nut New £ 12.05

12 - Water Pump Acorn Nut New Price on Enquiry

13 - WASHER

14 - STUD

15 - Water Pump 360 New £ 219.95

16 - O-ring New £ 12.79

17 - Water Pump Seal ss New Price on Enquiry

18 - Washer New Price on Enquiry

20 - Bearing w/ Shaft (575M) New Price on Enquiry

21 - Feather key

22 - Seeger Ring New Price on Enquiry

23 - Water Pump Pulley 360

24 - WASHER

25 - Nyloc Nut M10 x1.25x10 New £ 0.65

26 - Union

27 - BUSHING FOR BYPASS

28 - SPRING FOR BYPASS

29 - O-Ring New Price on Enquiry

30 - Water pump housing plug 360 New Price on Enquiry

31 - Water pump housing clip 360 New Price on Enquiry

32 - SLEEVE

32 - SLEEVE

33 - PIPE

33 - PIPE

34 - SCREW COLLAR

34 - SCREW COLLAR

35 - Core Plug 20mm Flat New Price on Enquiry

36 - WATER OUTLET MANIFOLD CONNECTI

37 - WATER/OIL TEMPERATURE SENSOR

38 - Seal Washer/Gasket New Price on Enquiry

39 - Coolant Pipe Gasket New Price on Enquiry

40 - NUT

41 - Do Not Use - See GE07667n

41 - Rocker Block Wavy Washer New £ 0.12

42 - COMPLETE WATER OUTLET MANIFOLD

43 - Stud 8 x 32 New £ 0.90

44 - Coolant Pipe Gasket New Price on Enquiry

45 - Nut

46 - WASHER
