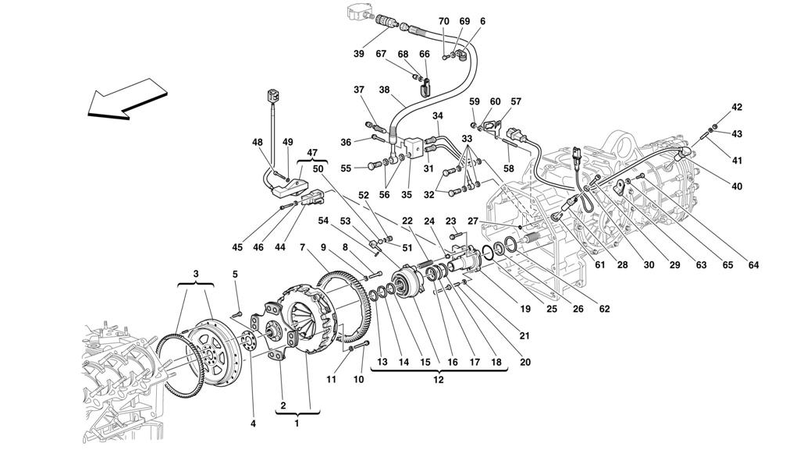

1 - 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 1 COMPLETE CLUTCH

2 - CLUTCH DISC

3 - Flywheel 360

4 - Flywheel Washer

5 - Flywheel Bolt

6 - Clamp

7 - RING GEAR

9 - Clutch Bolt Wavy Washer 550/57

10 - Clutch Bolt 360

11 - Clutch Cover Spring Washer 430

12 - COMPLETE THRUST BEARING

13 - Scraper Ring New Price on Enquiry

14 - Air Filter 206/246 New Price on Enquiry

15 - Scraper Ring New Price on Enquiry

16 - Seal Ring New Price on Enquiry

17 - RING

18 - Scraper Ring New Price on Enquiry

19 - BEARING SUPPORT FLANGE

20 - STUD FOR END OF STROKE

21 - Wavy Lock Washer 8mm

22 - Clutch Housing Spring

23 - SCREW -M8 X 25-

24 - Spacer New Price on Enquiry

25 - O-Ring New Price on Enquiry

26 - Oil Seal 30/47/7 New Price on Enquiry

27 - O Ring 106 New £ 0.52

28 - Angolar speed sensor 360 New Price on Enquiry

28 - Speed Sensor New £ 49.75

29 - SCREW -M6 X 14-

30 - Washer New Price on Enquiry

31 - CLUTCH CONTROL TUBE

32 - PIPE UNION

34 - BLEED SYSTEM PIPE

35 - BLOCK

36 - SCREW

37 - Bleeder screw

38 - COMPLETE CLUTCH HOSE

39 - FEMALE COUPLING

40 - ELECTRO-MAGNETIC SENSOR

41 - STUD

44 - SUPPORT

45 - SCREW

46 - WASHER

47 - Sensor Kit F1 360 New Price on Enquiry

48 - SCREW

49 - WASHER

50 - Clutch Position Sensor Magnet

51 - O-Ring New Price on Enquiry

53 - Thrust Bearing Pin New Price on Enquiry

54 - Roll Pin 2x12mm (F430) New Price on Enquiry
