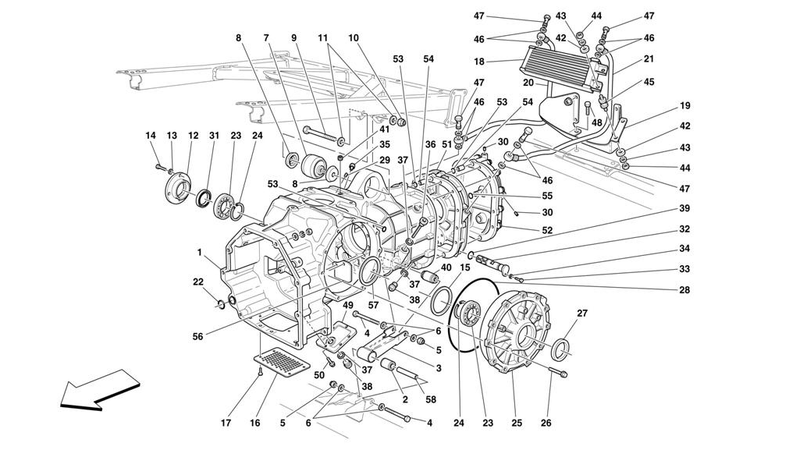

1 - 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 1 BOX TRANSMISSION

2 - Gearbox Bush 360

3 - SMALL LINK

4 - SCREW -M12 X 1.25 X 70-

6 - WASHER

7 - RESILIENT BUSHING

8 - RETAINING WASHER

10 - NUT

11 - WASHER

12 - R.H. FLANGE FOR SHAFT

13 - WASHER

14 - SCREW

15 - RING

15 - REGISTER RING

15 - REGISTER RING

16 - Bell Housing Cover 360 New £ 174.90

17 - Screw

17 - Bell Housing Inspection Plate Screw 360 New £ 4.35

18 - OIL RADIATOR

19 - RADIATOR SUPPORT

20 - OIL DELIVERY TUBE

21 - OIL RETURN TUBE

22 - O Ring Seal New £ 3.16

23 - BALL BEARING

24 - FLEXIBLE RING

25 - DIFFERENTIAL COVER

26 - SCREW

27 - Oil Seal 55/70/8 New Price on Enquiry

28 - O-Ring New Price on Enquiry

29 - Plug closing rollers throug ho

30 - THREADED PLUG

31 - Oil Seal 55/72/8 New Price on Enquiry

32 - Gearbox Oil Filter

33 - SCREW

34 - WASHER

35 - OIL VENT

36 - Oil Level Plug 360 New £ 38.17

37 - Copper Washer 22x27mm New £ 0.30

38 - Drain Plug 360/430/550/575 New £ 21.99

39 - O-Ring New Price on Enquiry

40 - Gearbox Support Bush

41 - PLUG

42 - WASHER

43 - Clutch Bolt Wavy Washer 550/57

44 - NUT

45 - Air Box Rubber Mount 360/355 New £ 18.63

46 - Sealing Washer 16mm I.D. (F430) New Price on Enquiry

47 - UNION

48 - SCREW -M6 X 20- -Fastening bra

49 - Lower Gearbox cover. 360 HE New Price on Enquiry
