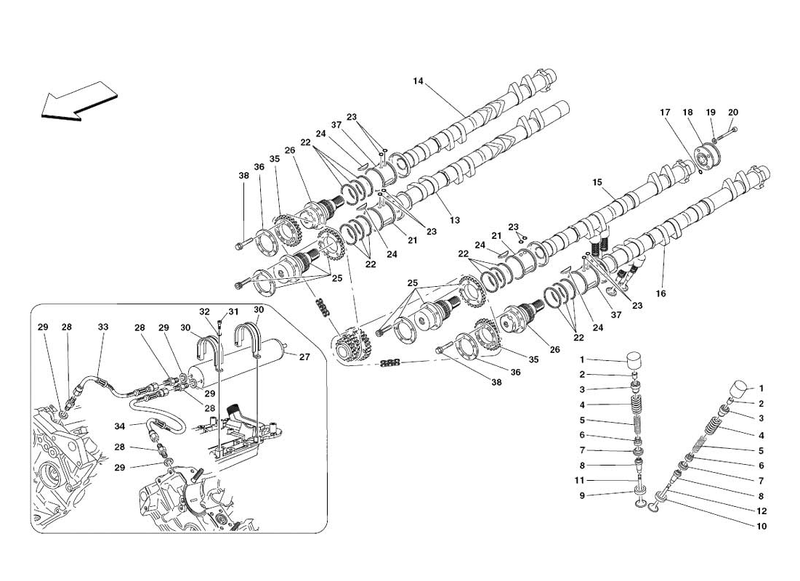

1 - HYDRAULIC TAPPETS -Applicable

2 - VALVE SPRING HALF-CONE

3 - UPPER STOP CAP

4 - OUTER SPRING FOR VALVE RETURN

5 - INNER SPRING FOR VALVE RETURN

6 - OIL SEAL

7 - LOWER STOP CAP

8 - INTAKE VALVE GUIDE

9 - INTAKE VALVE SEAT

10 - EXHAUST VALVE SEAT

11 - INTAKE VALVE

12 - EXHAUST VALVE

13 - RH. INTAKE CAMSHAFT

14 - RH. EXHAUST CAMSHAFT

15 - LH. INTAKE CAMSHAFT

16 - LH. EXHAUST CAMSHAFT

17 - Gasket

18 - VARIABLE VALVE TIMING ADJUSTER

19 - WASHER

20 - SCREW

21 - VARIABLE VALVE TIMING ADJUSTER

22 - RING

23 - Gasket

24 - KEY

25 - VARIABLE VALVE TIMING ADJUSTER

26 - VARIABLE VALVE TIMING ADJUSTER

27 - OIL ACCUMULATOR FOR VARIABLE V

28 - THREADED CONNECTOR

29 - Gasket

30 - BRACKET

31 - SCREW -No longer supplied- -Re

32 - Conic Washer 6.4x12x1.2 New Price on Enquiry

33 - ACCUMULATOR TO RH. HEAD CILIND

34 - ACCUMULATOR TO LH. HEAD CILIND

35 - GEAR WHEEL

36 - RING

37 - VARIABLE VALVE TIMING ADJUSTER

38 - SCREW
