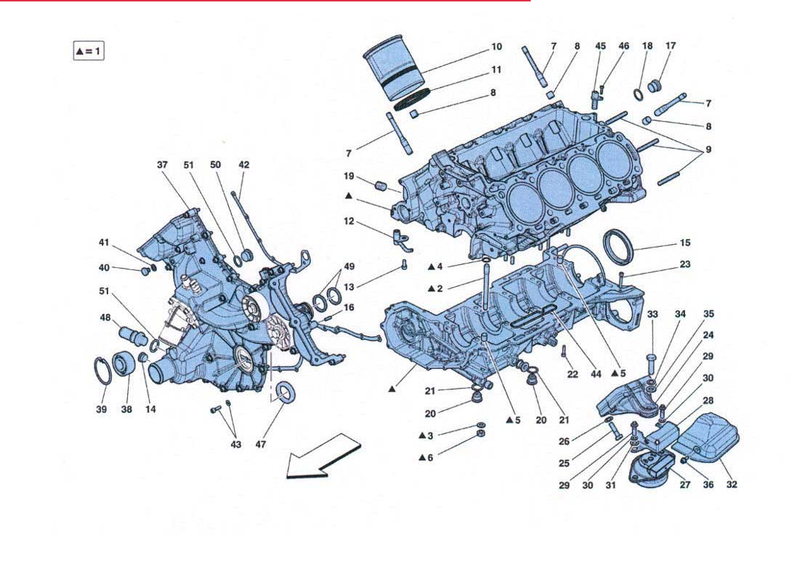

0 - Engine Complete

0 - Gasket Set

1 - CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY 1

2 - STUD BOLT 10

2 - STUD BOLT 10

3 - WASHER D.10.2-20 X 2 20

4 - O-RING MSRP: 1.00

5 - CENTERING DOWEL 2

6 - HEX NUT M10 X 1.25 X 8

7 - STUD BOLT CRANKCASE 20

10 - CYLINDER SLEEVE 8

11 - O-RING

12 - COMPL. PISTON COOLING NOZZLE 8

13 - SCREW 8

14 - CAP 1

15 - REAR MAIN OIL SEAL

16 - CENTERING DOWEL 2

17 - THREADED PLUG 1

18 - COPPER GASKET D.28-22.3 X 1.5

19 - THREADED PLUG 2

20 - MAGNETIC THREADED PLUG M22 X 1.5

21 - GASKET MSRP: 1.00

22 - SCREW MSRP: 0.35

23 - SCREW 2

24 - LH ENGINE STRUT 1

24 - RH ENGINE STRUT 1

25 - SCREW 8

26 - WASHER 8

27 - COMPL. LH FLEXIBLE ENGINE MOUNTING BUSH 1

27 - COMPL. RH FLEXIBLE ENGINE MOUNTING BUSH 1

28 - STAFFA LIMITATRICE ESCURSIONE TAMPONE DX. 1

28 - STAFFA LIMITATRICE ESCURSIONE TAMPONE SX. 1

29 - SCREW 6

30 - WASHER

31 - Flat WasherD. 10,50-21 X2

32 - ENGINE MOUNTING BUSH HEAT SHIELD 2

33 - SCREW 2

36 - Socket Head Cap Screw ROND. M6X14

37 - FRONT COMPL. CRANKCASE COVER 1

38 - BEARING 1

39 - SEEGER RING

40 - BLEED PLUG 2

41 - Gasket D. 10 -16X 1,5

42 - FRONT COVER GASKET 1

43 - M6 x 18

43 - M6 x 22

43 - M6 x 25

43 - M6 x 30

43 - M6 x 35

43 - M6 x 45
