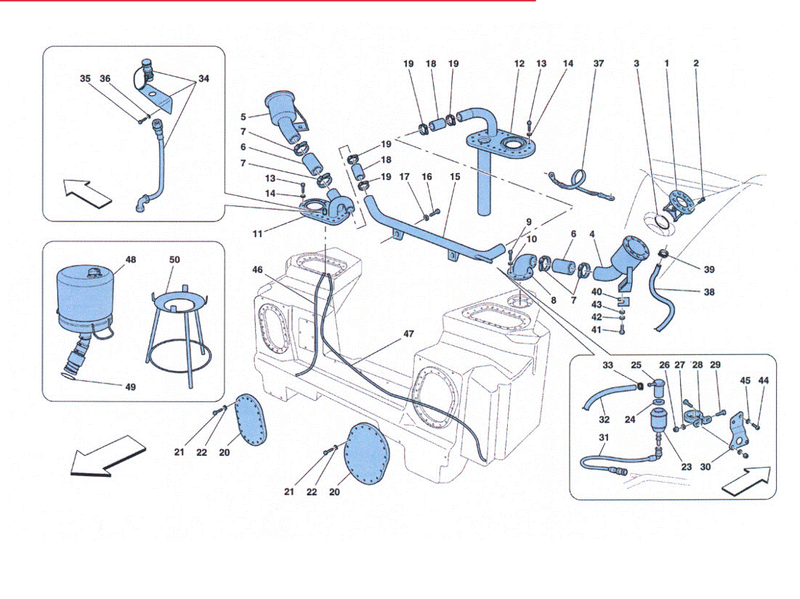

1 - Fuel Tank Plug

2 - Countersunk Socket Screw M 5X 16

3 - Ring OR

4 - LH Filler Neck

5 - RH Filler Neck

6 - Coupling Sleeve D.55 X 5 X Hose DI CARICO

7 - SCREW COLLAR D. 50- 70X9

8 - Hose DI CARICO TankCARBURANTE Assembly

9 - SCREW TE M 6X 16

10 - UNDULATING SPRING WASHER D 6,40-12X-0,5

11 - RH Filter Mounting Flange

12 - LH Filter Mounting Flange

13 - SCREW TE M 6X 16

14 - UNDULATING SPRING WASHER D 6,40-12X-0,5

15 - Hose COLLEG.SFIATI TankCON CALZA

16 - Hex Head Bolt FLANGIATA M6 X 20

17 - Washer TRANCIATA D 6,15-18X1,5

18 - Coupling Sleeve COLL.Hose Vent A Tank

19 - SCREW COLLAR D. 30- 45X9

20 - FLANGIA DI SERVIZIO

21 - SCREW TE M 6X 16

22 - UNDULATING SPRING WASHER D 6,40-12X-0,5

23 - Housing Valve MULTIFUNZIONALE

24 - Gasket PER Valve A GALLEGG.

25 - Valve MULTIFUNZIONALE

26 - NUT AND NYLON STOP M6X6

27 - ROSETTA TRANC. D. 6,15-11X 1

28 - Mounting Bracket CON GUAINA X 1 Hose D.60

29 - SCREW TE M 6X 30

30 - Bracket SOSTEGNO Housing VALV.MUL

31 - Hose Vent SERBAT. Assembly

32 - Hose DRENAGGIO Vent Tank

33 - COLLARE X FISS.MANICOTTI D. 15,7

34 - Fuel Sampling System

35 - SCREW TE M 6X 16

36 - Flat Washer D. 6,15-15X 1

37 - TRECCIA DI MASSA X CENTRAL.AIR-BAG

38 - Hose DRENAGGIO BOCCHETTONE

39 - SCREW COLLAR D. 12- 18X7

40 - RASAMENTO X Bracket FISS.BOCCHETTONE

41 - SCREW TE M 6X 20

42 - Washer SPACCATA ONDULA D.6 11,8X1,3

43 - Washer TRANCIATA D 6,15-18X1,5

44 - VITE M 6X15 TBEI A ESLOK

45 - Flat Washer D. 6,15-15X 1

46 - Hose INTERNO RH PREL.CARBURANTE D.12

47 - Hose INTERNO LH PREL.CARBURANTE D.12

48 - Filling Tank Kit

49 - Ring ORValve RIEMPIMENTO

50 - Support Bracket BIDONE RIEMP.Tank
